Re: Bridge and Assault Crossing Equipment

Post by Temujin » Sun May 20, 2018 6:41 pm

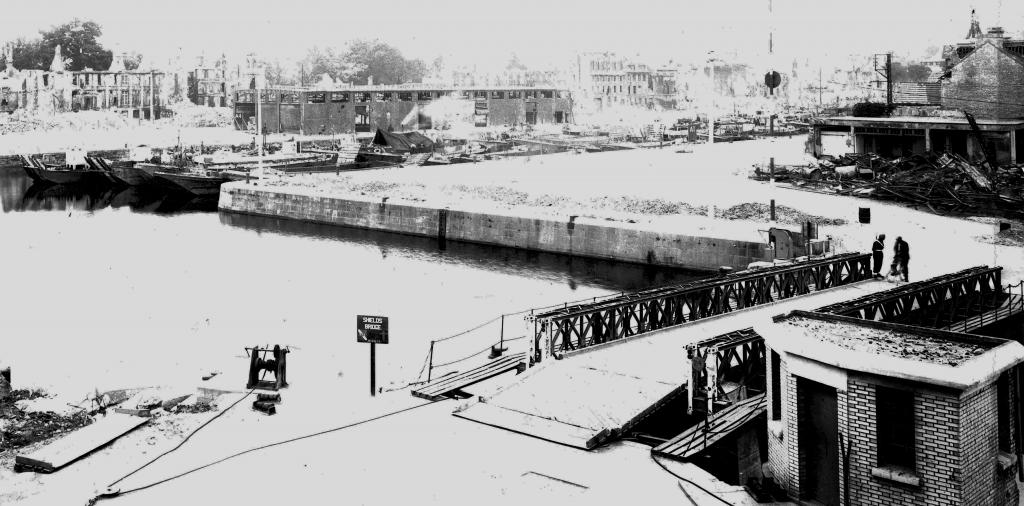

Shield Bridge, Caen.jpg
Shield Bridge, Caen.jpg (95.95 KiB) Viewed 719 times

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:46 pm

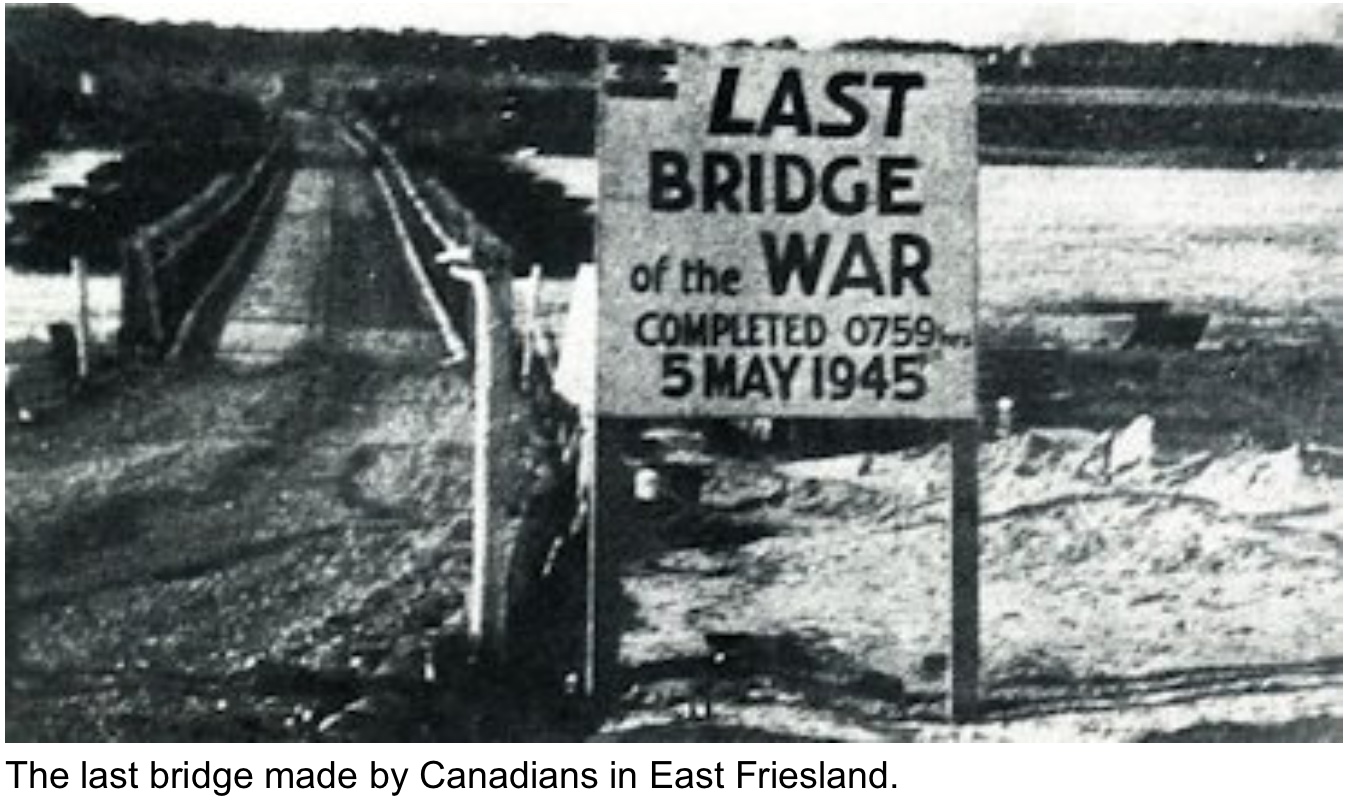

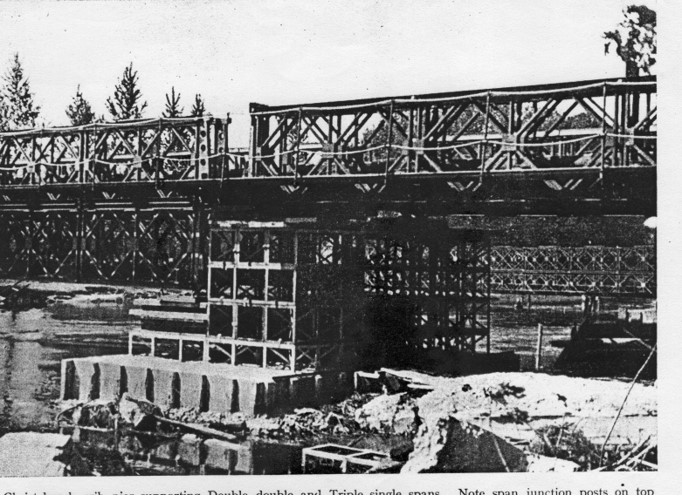

Class 70 Bailey Bridge over the River Hase at Haselunne Rebuilt by the 5th Completed May 5th 1945. Christchurch crib pier supporting Double double and Triple single spans. Note span junction posts on top storey of Double double to accommodate transom.


THANK You to Lorraine Campbell for all the information on these 6 posts

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:47 pm

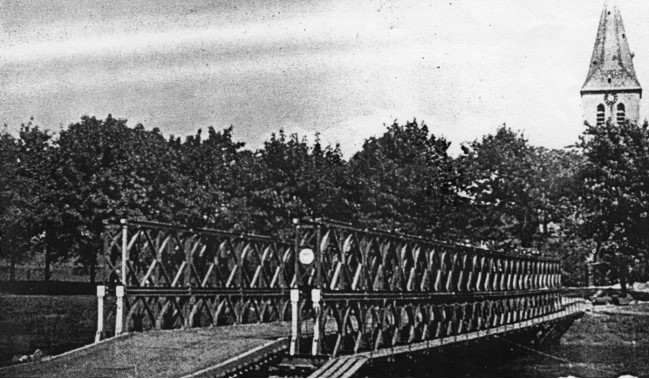

Class 40 Bailey Bridge ove the River Hase at Haselunne Constructed by 1 Candain A Troops. Completed May 3rd, 45. Normal double double construction

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:49 pm

Martin Bridge

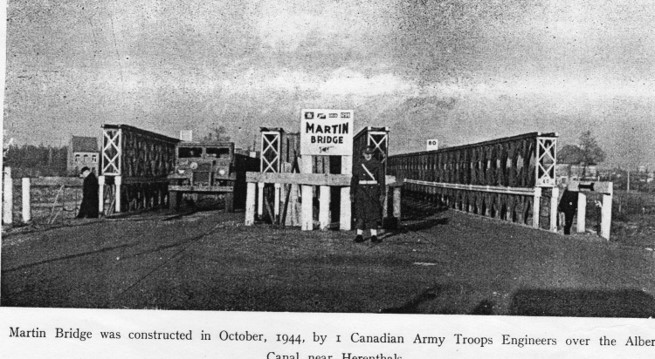

Martin Bridge was constructed in Oct 44 by I Canadian Army Troops Engineers over the Albert Canal near Herenthels

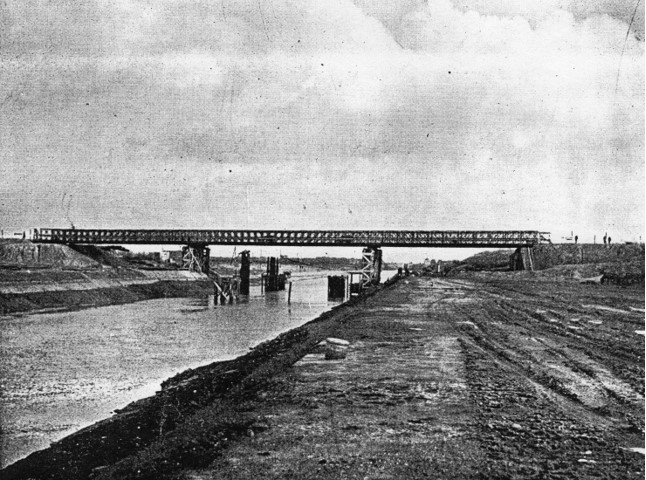

Martin Bridge consisted of two separate Bailey continuous bridges on pile piers

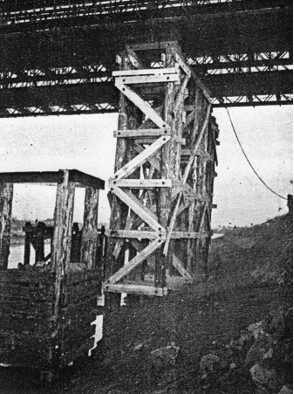

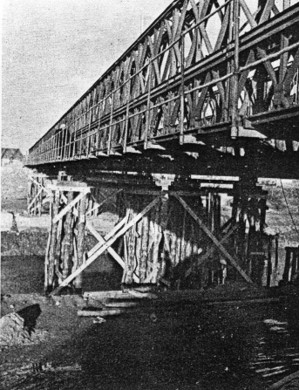

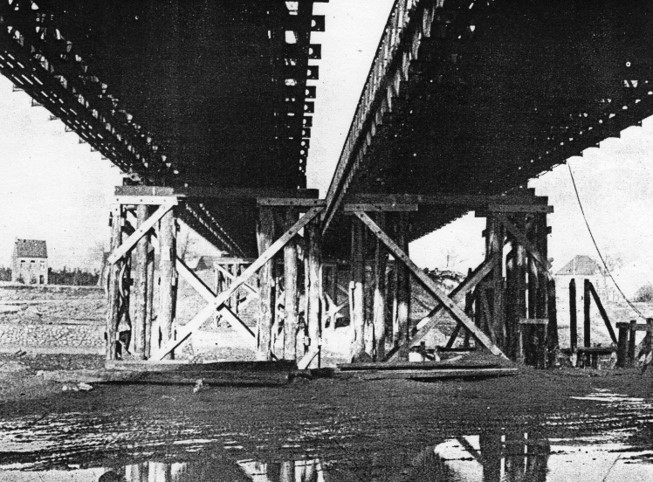

Martin Bridge details of piers

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:51 pm

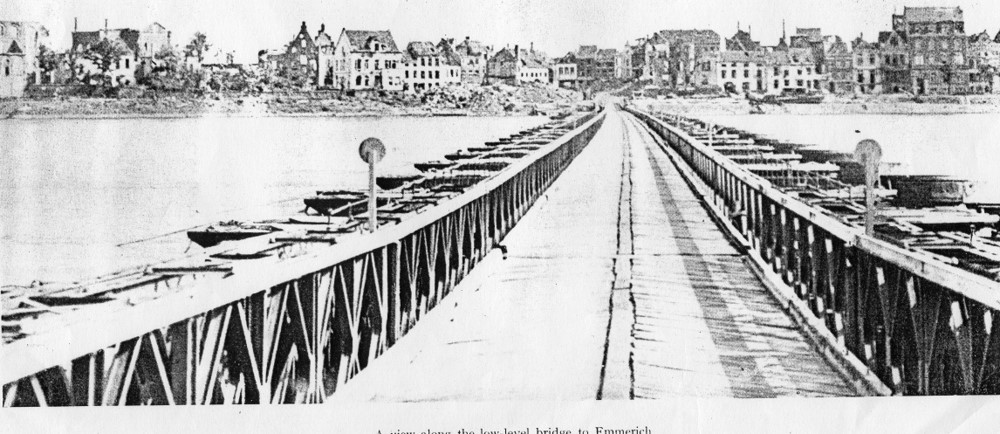

A view along the low level bridge to Emmerich

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:52 pm

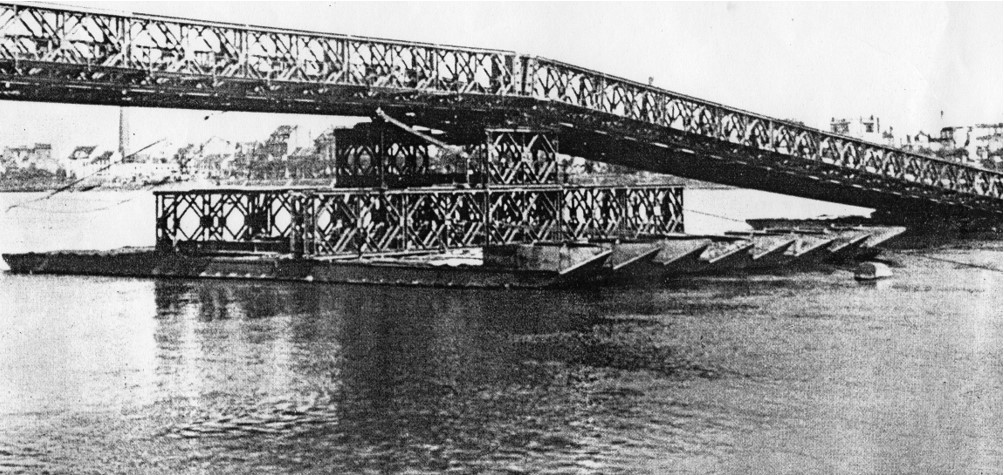

MacLean Bridge at Emmerich

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Thu May 31, 2018 12:56 pm

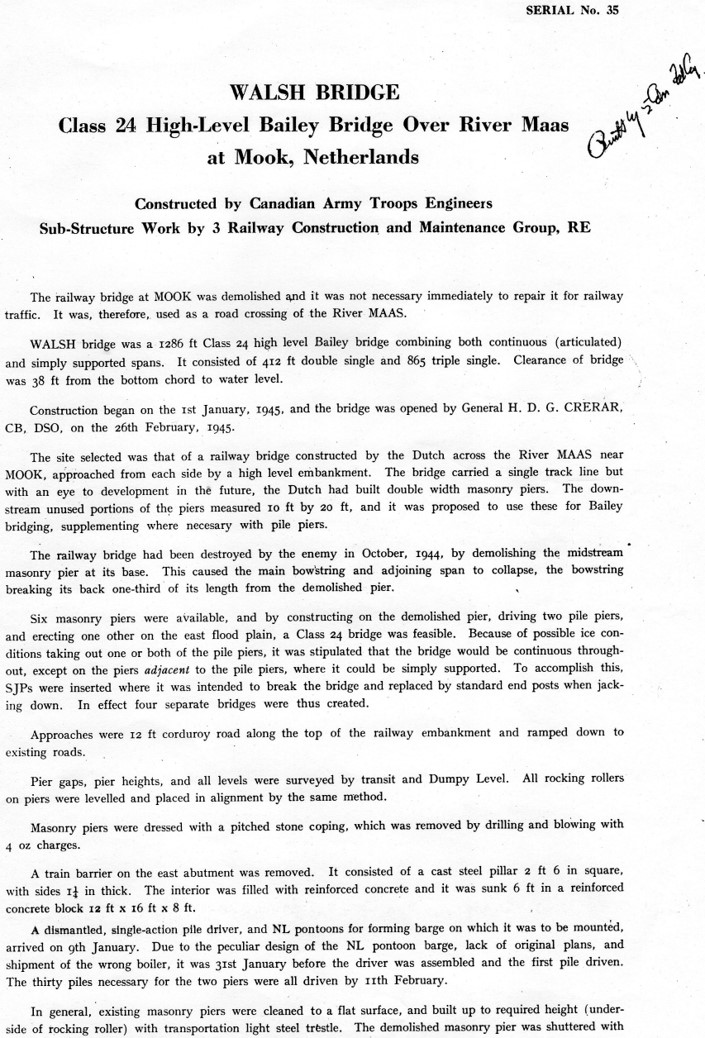

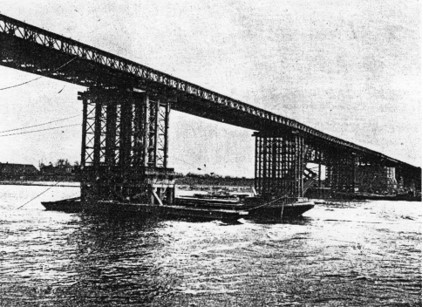

Part of the completed Walsh Bridge

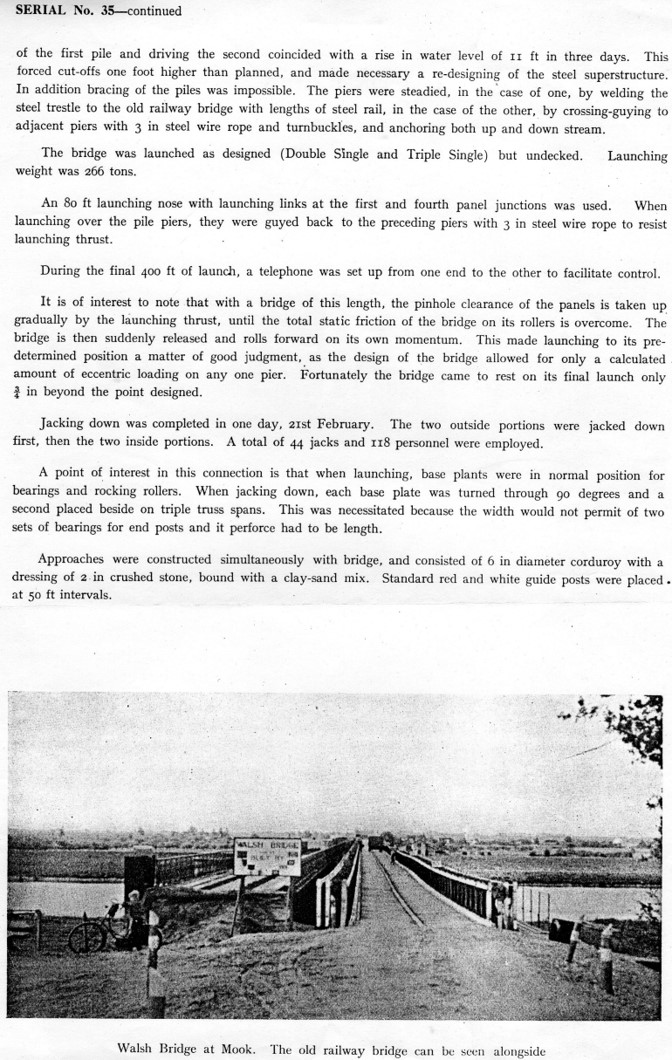

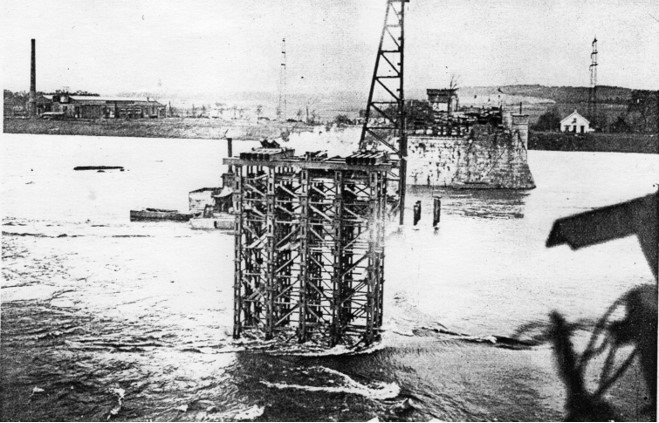

Walsh Bridge at Mook over the River Maas. The erection of light steel trestle piers on pile drivers. After completion of the pier in the foreground, the river rose and the second, at which the pile driving rig can be seen, was built to a different design

User avatar
Temujin
Meritorious
Meritorious
Posts: 1380
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 61

Re: Bridge and Assault Crossing Equipment

Post by Temujin » Fri Nov 30, 2018 3:25 am
